Fine Wire Stapler

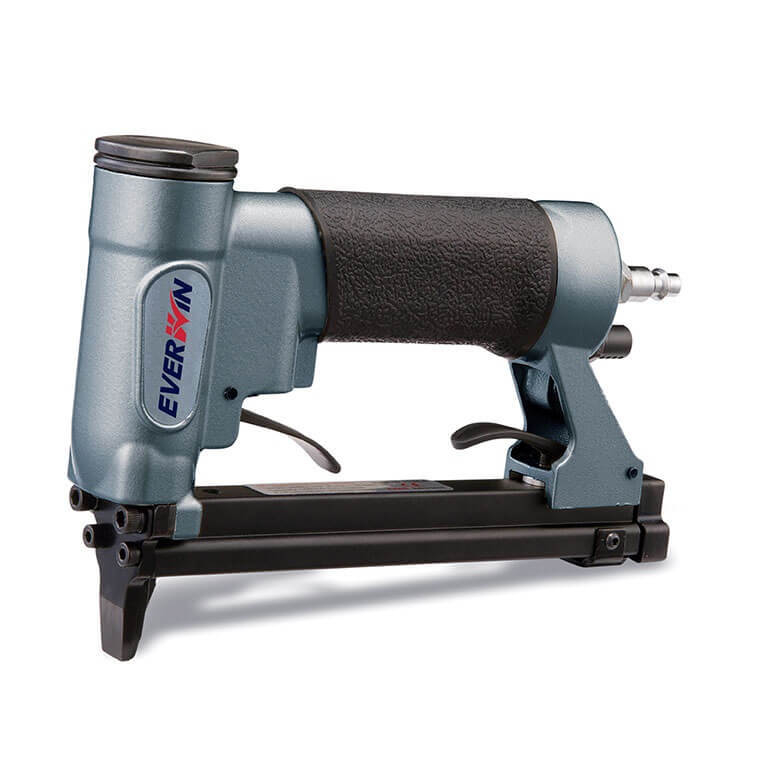

US8016
Compact and durable, the US8016 series delivers the best-in-class performance for a variety of fine wire stapling applications. With a robust motor and ergonomic design, this tool works all day, every day and won't snag or scuff fabric. Versions with different features are available as follows: US8016A: Auto Fire, Short Magazine US8016ALM: Auto Fire, Long Magazine US8016LN: Single Fire Long Nose
- Rear adjustable directional exhaust
- Durable driver / bumper provides reliability
- One-hand manual rear latch.
- Robust metal magazine.
- Fast, sensitive trigger
- 2" (50mm) extra long nose version available : LN series.
- Optional safety double trigger
- Rapid Cycling engine.
APPLICATIONS
- Furniture Upholstery
- Automotive Vinyl
- Trim Carpentry
- House Wrap
FASTENER SPECS
| Loading Capacity | 100~180 |
| A | 5~16mm (3/16"~5/8") |
TOOL SPECS
| Weight | 0.9 kgs (2.0 lbs) US8025 : 1.2 kgs (2.6 bls) |
| Height | Short Nose : 140mm (5.5") Long Nose : 197mm (7.8") US8025 :180mm (7.1") |
| Width | 38mm (1.5") US8025 : 55mm (2.2") |
| Length | 216mm (8.5") US8025 : 215mm (8.5") |
| Operating Pressure | 5~6.9 bar (70~120 psi) |
| Driving Power | 51 In-lbs @100 psi |
| Model Number | B | C | Capacity | Wire Gauge |
|---|---|---|---|---|
| US8016 / US8016LN | 12.8mm (1/2") | 0.63 x 0.90mm (0.025" x 0.036") | 150 | 21 GA. 80 Series / Senco AT |

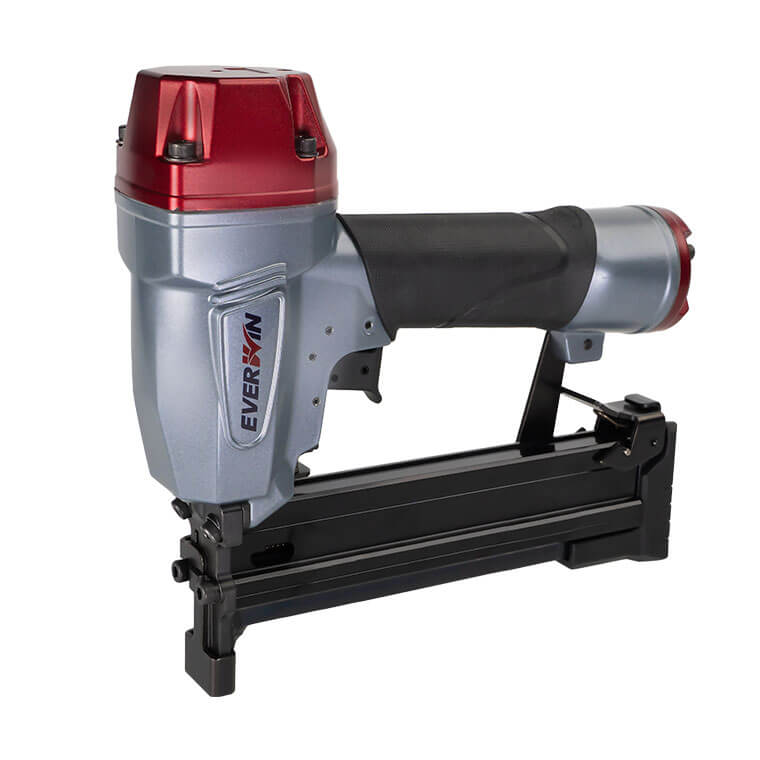

FS9040
Constructed with wraparound safety and a shock-absorbent casing on the bottom of its aluminum magazine, the FS9040-CT thrives in the industrial environment. Angled nose bolts are designed to alleviate stress on the nose piece and increase the lifespan of the tool, and long-lasting performance.
TOOL FEATURES
- Tool free jam clearance
- Wraparound safety boosts versatility.
- Reload indicator with dryfire lockout.
- Rear exhaust design
- Pinch-free ergonomic trigger
- Aluminum extruded bottom load magazine for ease of jam clearance with shock-absorbent back cover
APPLICATIONS
- Trim Work
- Furniture Building
- Other Finish Applications
FASTENER SPECS
| Type | 18 Gauge 90 Series / Bostitch SX Staples |
|---|---|
| Loading Capacity | 100 |
| A | 16~40mmm (5/8"~1-9/16") |
| B | 5.8mm (1/4") |
| C | 1.25 x 1.00mm (0.049" x 0.039") |
TOOL SPECS
| Weight | 3.5lbs. (1.6kg) |
|---|---|
| Height | 235mm (9.3") |
| Width | 60mm (2.4") |
| Length | 240mm (9.4") |
| Operating Pressure | 5~7 bar (70~100 psi) |
| Driving Power | 188 In-lbs @100 psi |

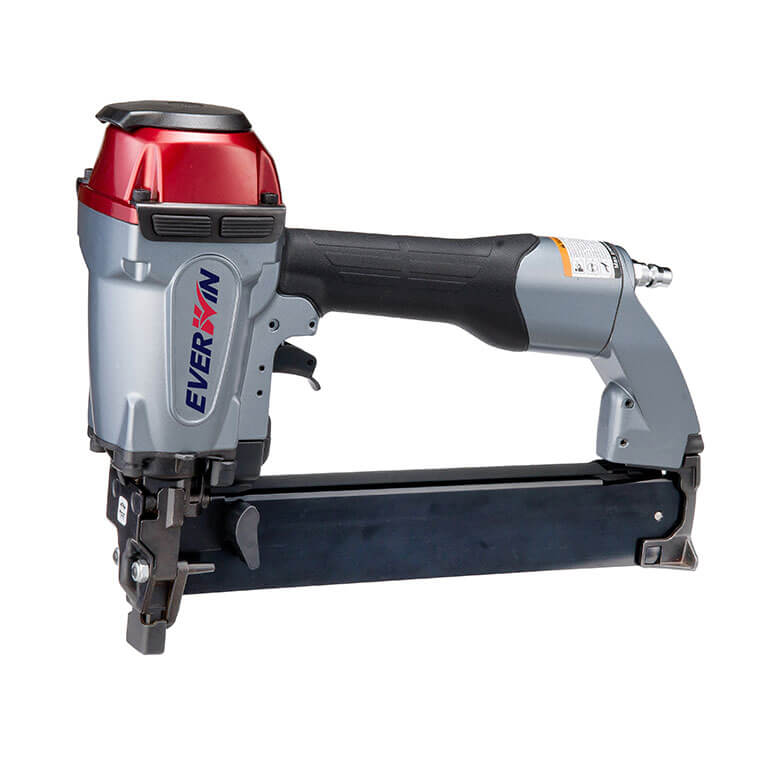

SN50S5
The SN50S5 is the industry benchmark for industrial heavy wire staplers. Built of Magnesium frame and Investment-casted components. It combines class-leading power, durability, ergonomics, as an unrivaled professional tool.
TOOL FEATURES
- Steel, adjustable hammer exhaust
- Rubber protection pad protects work surface.
- Depth adjust device front protection plate.
- Long narrow nose provides improved line of sight.
- Magnesium ergonomic frame over-molded handle grip
- Magnesium casted one-piece connector with industry leading durability
- Rear- jam clearance investment-casted protector minimizes downtime and maximizes tool durability
- High speed operation, 15 cycles/second.
- Full automatic version available : SN50S5A
- Available with double or triple length magazines : SN50S5LM / SN50S5MAG
- Two trigger options available : SN50S5-ST (sequential) / SN50S5-CT (contact)
APPLICATIONS
- Sheathing and Subflooring
- Furniture Framing
- Crate and Box Assembly
- Pallets
- Fascia and Soffits
- Ridge Beam Assembly
FASTENER SPECS
| Type | 16 & 17 GA. Bostitch BCS5 / SENCO N / BeA 155 |
|---|---|
| Loading Capacity | 160~180 |
| A | 25~50mm (1"~2") |
| B | 11.1mm (7/16") |
| C | 1.6 x 1.4mm (0.062" x 0.055") 1.45 x 1.3mm (0.057" x 0.051") |
TOOL SPECS
| Weight | 2.3 kgs (5.1 lbs) |
|---|---|
| Height | 272mm (10.7") |
| Width | 94mm (3.7") |
| Length | 363mm (14.3") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 397 In-lbs @100 psi |

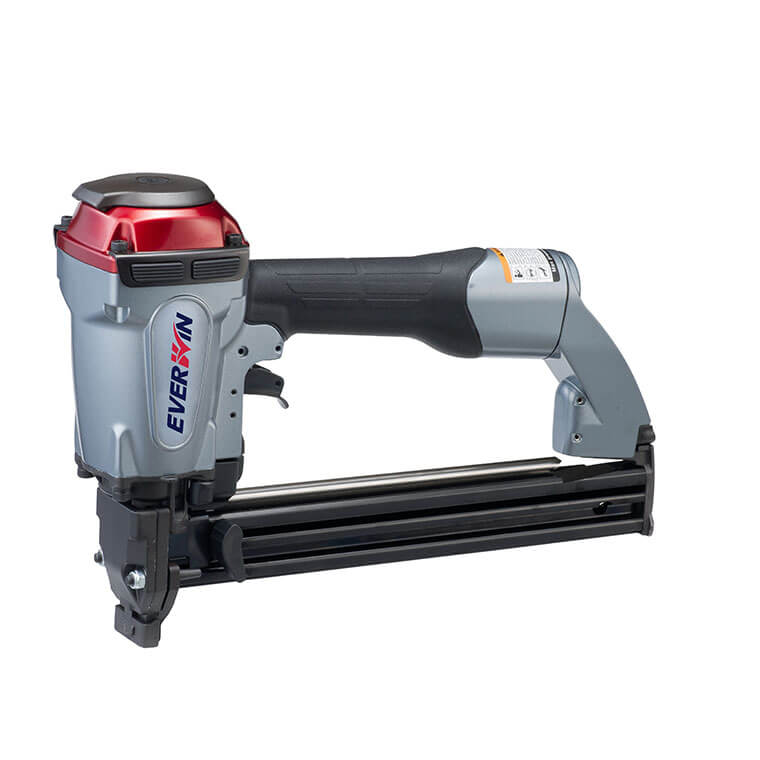

SN40S2
The SN40S2 is the industry benchmark for industrial heavy wire staplers. Built of Magnesium frame and Investment-casted components, it combines class-leading power, durability, ergonomics, as an unrivaled professional tool.
TOOL FEATURES
- Steel, adjustable hammer exhaust
- Rubber protection pad protects work surface.
- Depth adjust device front protection plate.
- Magnesium ergonomic frame over-molded handle grip.
- Magnesium casted one-piece bracket with industry leading durability
- Rear-jam clearance investment-casted protector minimizes downtime and maximizes tool durability.
- High speed operation, 15 cycles/second.
- Full automatic version available : SN40S2A
- Available with double or triple length magazines : SN50S5LM / SN50S5MAG
- Two trigger options available : SN40S2-ST (sequential) / SN40S2-CT (contact)
APPLICATIONS
- Foam Insulation Board
- Furniture
- Cabinet Frames
- Butt-joints
- Corrugated Carton to Skid
FASTENER SPECS
| Type | 16 GA. Bostitch BCS2 / Prebena WC |
|---|---|
| Loading Capacity | 160 |
| A | 19~40mm (3/4"~1-9/16") |
| B | 25.4mm (1") |
| C | 1.6 x 1.4mm (0.062" x 0.055") |
TOOL SPECS
| Weight | 2.5 kgs (5.5 lbs) |
|---|---|
| Height | 94mm (3.7") |
| Width | 94mm (3.7") |
| Length | 363mm (14.3") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 369 In-lbs @100 psi |
